2 Layers Blown Film Extrusion
Double layers Film Blowing Machine with one mould,two extruder,produce two layers film.
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details

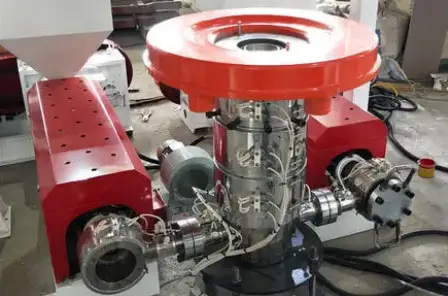

2 layers Blown Film Extrusion
The technique of 2 layers blown film extrusion is employed to manufacture laminated plastic films from various materials, including low density polyethylene (LDPE), high density polyethylene (HDPE), and linear low density polyethylene (LLDPE). These films find extensive application in the packaging of liquids, printed products, export items, and industrial goods. The implementation of double-layer co-extrusion for laminated films significantly enhances the strength and longevity of liquid packaging.
This method of 2 layers blown film extrusion is also applied in diverse fields such as agricultural films, coated films, and greenhouse films. The films produced can achieve a maximum width of 3 meters, with an open side measuring 6 meters. We are dedicated to providing outstanding quality and service in the area of co-extrusion.
double layers blown film extrusion
| Model | 2SJ-G50 | 2SJ-G55 | 2SJ-G60 |
| screw | Two screws | Two screws | Two screws |
| Screw diameter | ф50×2 | ф55×2 | Ф60×2 |
| Tube film width(mm) | 800 | 1000 | 1200 |
| Open Film width(mm) | 1600 | 2000 | 2400 |
| film thickness (One-surface) | 0.015-0.10mm | 0.015-0.10mm | 0.015-0.10mm |
| Air Ring | Double Lip Air ring | ||
| Material | LDPE,HDPE,LLDPE,EVA,MLDPE,recycle material | ||
| Film Color | Transparent,Black,Red,White,blue…bag color changed by masterbatch | ||
| Usage | packing film,table cover,shrink film,plastic bag,trash bag,water bag | ||
| L/D | 28：1 | 28：1 | 28：1 |
| Max. Output(kg/h) | 40 | 65 | 80 |
| Power of main motor(kw) | 11×2 | 15×2 | 18.5×2 |
| Heating Power(kw) | 26 | 30 | 42 |
| Measurement (m) | 4.2×2.2×4 | 4.6×2.4×4.6 | 5×2.8×5 |
| Weight(T) | 4 | 5 | 6 |
| Power Voltage | 220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…) | ||
| Material Core Diameter | 76mm | ||
| Machine Working Time | 24 hours * 7 days | ||
| Warranty | 1 year | ||
| Technical Assistance | Engineers available to service machinery overseas | ||
| ※Correct specifications depend on the actual model. All specifications are subject to change without prior notice. | |||
Shipment
shipment of plastic bag machine
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).
instalment service
install machines in customer factory
Machine parts supplier
Our Main parts cooperator as following brand,but standard parts all made from China.
Material supplier
How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as
Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
