Plastic recycling machine

Plastic recycling machine

The plastic recycling machine is engineered to process a variety of plastic materials, including HDPE, LDPE, and PP. It features an inverter that manages speed, thereby enhancing energy efficiency. The granulating crusher is equipped with a motor that allows for adjustable speed, promoting user-friendliness and substantial processing capacity.

This water-cooled plastic recycling machine is specifically designed for the treatment of LDPE, HDPE, LLDPE, and PP materials in assorted forms such as plastic films,plastic garbage bags,plastic shopping bag,plastic clothes bag and flakes. It integrates an inverter-controlled extruder speed that maximizes energy savings and cost efficiency. The machine consists of an extruder, a pelletizing unit, and a water cooling component. It comes with a one-year warranty, ensuring uninterrupted operation. With its simple design, it promotes ease of use and is an economical choice for newcomers in the field.

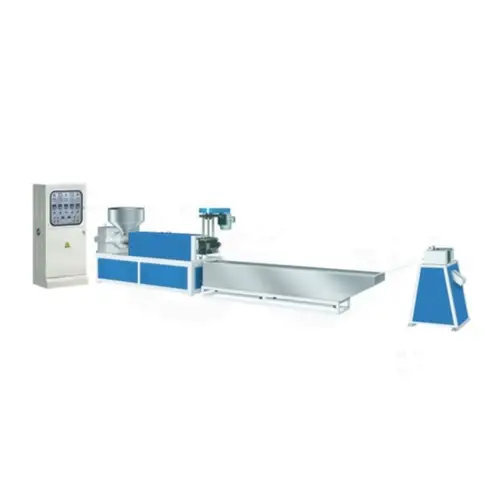

plastic recycling machine

Main Technical Variables:

Model	SJ-90	SJ-100	SJ-110	SJ-120
Type Diameter of Screw Stem	φ90	φ100	φ110	φ120
Major Diameter Ratio of Screw Stem	L/D 20：1 -22：1	L/D 20：1 -22：1	L/D 20：1 -22：1	L/D 20：1 -22：1
Rational Speed of Screw Stem	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Main Motor Power	22kw	30kw	37kw	45kw
Output	68kg/h	95kg/h	120kg/h	135kg/h
Weight of overall(kg)	2600kg	2800kg	3000kg	3200kg
Cover dimensions (l×w×h) (mm)	4000×1500×1800	4000×1500×1800	4000×1500×1800	4000×1500×1800
Power Voltage	220V,380V,440V,480V(Customized based on request,For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz…)
Machine Working Time	24 hours * 7 days
Warranty	1 year
Technical Assistance	Engineers available to service machinery overseas

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

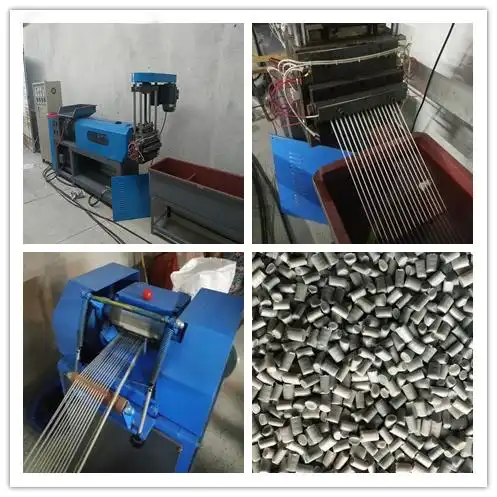

plastic recycling machine

plastic crusher PE PP PET PVC

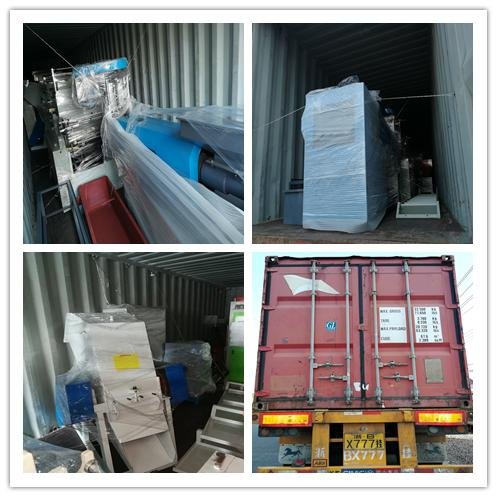

Shipment

shipment of plastic bag machine

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

If you buy one container machines,we will pack machine with stretch film and loading container directly (FCL full container load).



instalment service

install machines in customer factory

Machine parts supplier

Our Main parts cooperator as following brand,but standard parts all made from China.

Material supplier

How To Find Polyethelene For Blown Film Extrusion.
Extrusion Film Extrusion use Polyethelene,such as

Low Density Polyethylene(LDPE),High Density Polyethylene(HDPE) and Linear Low Density Polyethylene(LLDPE),Polypropylene(PP).
Below are big brand material supplier in the world,they open office all over the world,you can check them in local market.
1.Sabic Saudi Basic Industries Corporation
2.ExxonMobil Chemical Company
3.Dow Chemical Company
