Product Details
Heat Sealing Plastic Bag Production Equipment

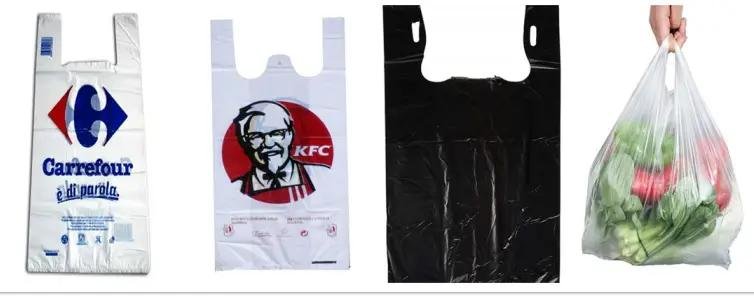

The Heat Sealing Plastic Bag making machine is specifically engineered for the production of printed vest bags.
It incorporates a variable frequency motor that improves energy efficiency and provides the ability to adjust speeds more flexibly.

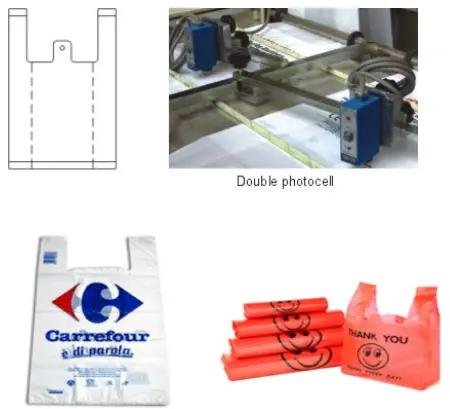

With a high-performance color code tracker, the machine guarantees enhanced accuracy in sealing and cutting lengths, significantly reducing the likelihood of errors. Furthermore, an advanced computer system allows for precise and customizable length adjustments.
Spare parts:
- servo motor 2 set -panasonic from Japan
- PLC 1 set – panasonic from Japan
- Hydraulic puncher 2 sets
- Automatic EPC
Main Technical Variables:
| Model | DFR 350×2 | DFR 450×2 |
| Max bag width | 30-300mm | 30-400mm |
| Max bag Length | 10-999mm | 10-999mm |
| Machine speed | 150×2pc/min | 150×2pc/min |
| Bag Thickness | 0.008-0.1mm | 0.008-0.1mm |
| Bag Material | LDPE,HDPE,LLDPE,recycle film | |
| Bag Color | Transparent,Black,Red,White,blue…bag color changed by Color masterbatch | |
| Motor Power | 2kw | 2kw |
| Electric Power | 3kw | 4kw |
| Weight | 1000kg | 1200kg |
| Machine dimension(L×W×H) | 3000×1400×1600mm | 3000×1500×1600mm |
| Power Voltage | 220V 1 Phase,50 Hz | |
| Machine Working Time | 24 hours * 7 days | |
| Warranty | 1 year | |
| Technical Assistance | Engineers available to service machinery overseas | |
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
Our Main parts cooperator as following brand,but standard parts all made from China.
