Side sealing bag making machine​

Side sealing bag making machine​

The Side sealing bag making machine​ is engineered for the heat sealing and cutting of bags crafted from materials such as BOPP, PP, PE, and others. It is particularly well-suited for the production of flower bags, triangle bags, and candy bags.

This machine is equipped with inverter control for the motor, enabling accurate speed adjustments. A user-friendly touch screen interface facilitates the management of both machine speed and bag dimensions. With an integrated photoelectric sensor, it can efficiently produce both printed and unprinted bags. Additionally, the machine features a hole punch capability. For enhanced functionality, an optional folding device is available.

Compatible materials for use with this machine include BOPP, PP, PE, POF, CPP, and similar materials that are suitable for heat sealing and cutting.

Among the products that can be manufactured are bags for clothing, socks, towels, bread, ornamental items, underwear, stationery, electric components, and also bags designed for bamboo and wood products.

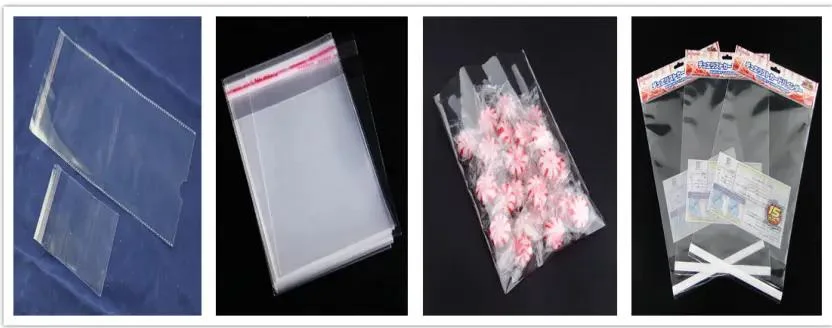

BOPP bag

Main Technical Variables:

Model	RQL-600	RQL-800	RQL-1000	RQL-1200	RQL-1400	RQL-1500
Width of sealing & cutting	580mm	750mm	950mm	1150mm	1350mm	1450mm
Length of sealing &cutting	900mm	900mm	900mm	900mm	1000mm	1000mm
Speed of bag-making	40-180pc/min	40-180pc/min	40-180pc/min	40-150pc/min	40-150pc/min	40-150pc/min
Main motor	1.1kw	1.1kw	1.5kw	1.5kw	2.2kw	2.2kw
Weight	700kg	800kg	900kg	1000kg	1400kg	1500kg
Outline dimension	3.6*1.1*1.7M	3.6*1.2*1.7M	3.6*1.5*1.7M	3.6*1.6*1.7M	3.6*1.8*1.7M	3.6*1.9*1.7M
Kind of Bag	BOPP bag,Bread Bag,Garment Bag, stationery Bag,DVD Bag,CD bag
Bag of Material	HDPE、LDPE、PP、OPP、BOPP
Power Voltage	220V
Machine Working Time	24 hours * 7 days
Warranty	1 year

If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.

Our Main parts cooperator as following brand,but standard parts all made from China.
